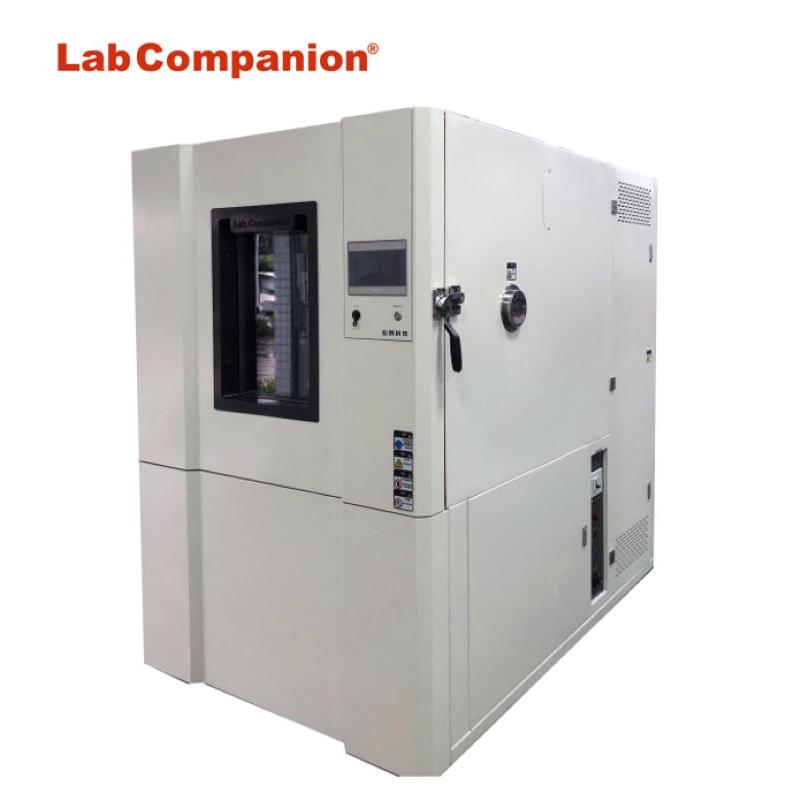

Rapid Temperature Change Test Chamber

Rapid Rate Thermal Cycling Chamber

Features of the Rapid Temperature Change Test Chamber:

1.The structure design of the Test Chamber is advanced and reasonable, and the supporting products and functional components have the international advanced level, which can meet the long-term, stable, safe and reliable production needs. It can meet the processing and production requirements of users for the above purposes, and is convenient to use, operation, maintenance, long service life, beautiful shape, have a good user interface, so that the user's operation and monitoring are more simple and intuitive.

2. Rapid temperature change Test Chamber is a Test Chamber that can apply temperature stress and can realize the change rapidly between the desired temperature values (such as +85~ 40℃ temperature range, the lifting temperature rate is 10℃ / min). It is composed of refrigeration system, heating system, control system, air circulation system, sensor system, etc.

3. The rapid temperature change Test Chamber has a large temperature control range, which can provide: high and low temperature rapid change test, one or more temperature change test (cycle); the rapid temperature change Test Chamber can also carry out low temperature(ultra-low temperature) and high temperature test separately.

4, the fast temperature change Test Chamber adopts the perfect modeling design, the appearance has excellent texture, beautiful atmosphere, strong and durable.

5. The control system adopts special control system for rapid temperature change test, with strong expansibility, simple operation, accurate control, stability and reliable.

Refrigeration System:

The air supply mode in the test chamber is the upper air supply and lower cooling air cooling system cooling system and compressor: in order to ensure the cooling rate and minimum temperature requirements of the test box, this test chamber adopts a binary overlapping air cooling refrigeration system composed of Taikang fully closed compressor. The stacked refrigeration system includes a high-temperature refrigeration cycle and a low-temperature refrigeration cycle, the connection container is for the evaporative condenser. Evaporation condenser is also to the role of energy transfer, the heat energy of the working room through the two-level refrigeration system, to achieve the purpose of temperature. The design of the refrigeration system applies the energy regulation technology. It is an effective treatment method that can ensure the normal operation of the refrigeration unit in the refrigeration system, so that the operation cost and failure rate of the refrigeration system can decrease to a more economical state.

(refrigeration room )

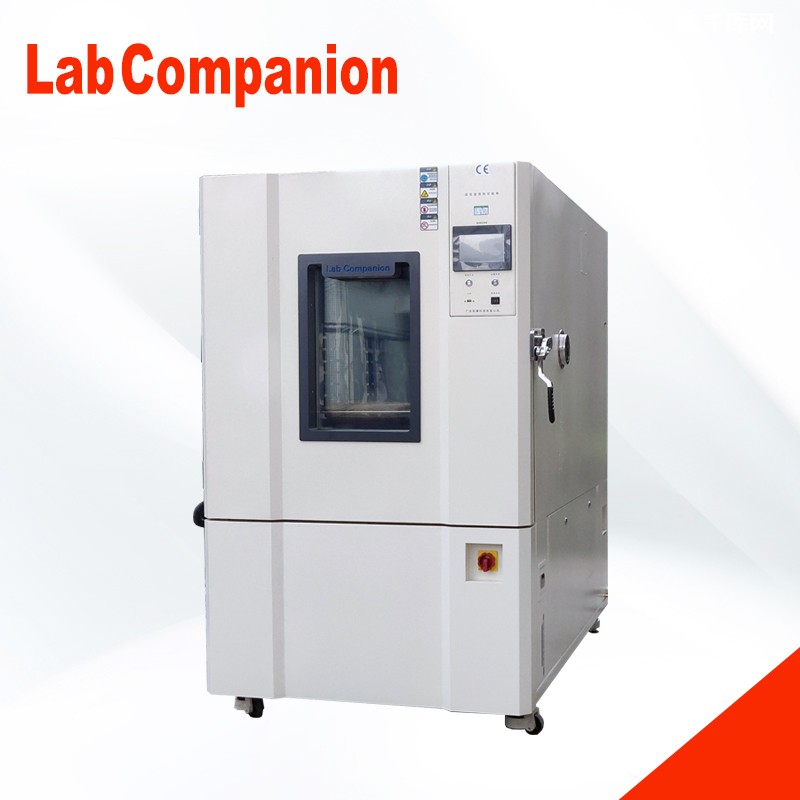

Customized Temperature Humidity Chamber

Environmental Chamber Temperature Humidity Control

Intelligent Controller Environmental Chamber

Touch type programmable temperature and humidity controller

It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.

Performance：

High accuracy

Precision control with 18bit A/D convertor

TEMP. : ±0.1% of full scale ±1 digit

HUMI. : ±1.0% of full scale ±1digit

      Optimizing PID group

Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only

      Specialized controller

As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV

     Specialized humidity control

Humidity control algorithm implements a stable control according to the equipment size。

      Heating cooling control

Separated hardware

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
