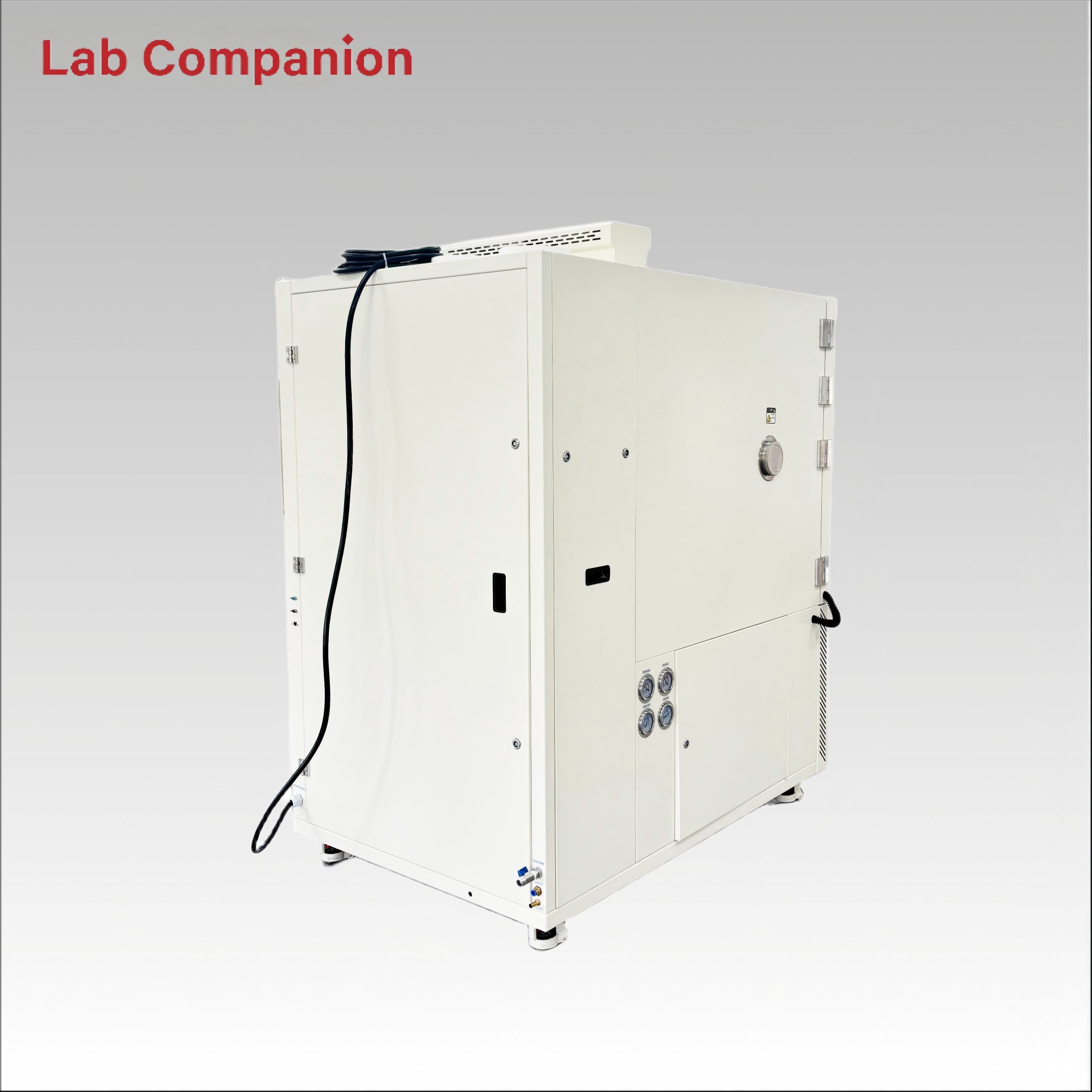

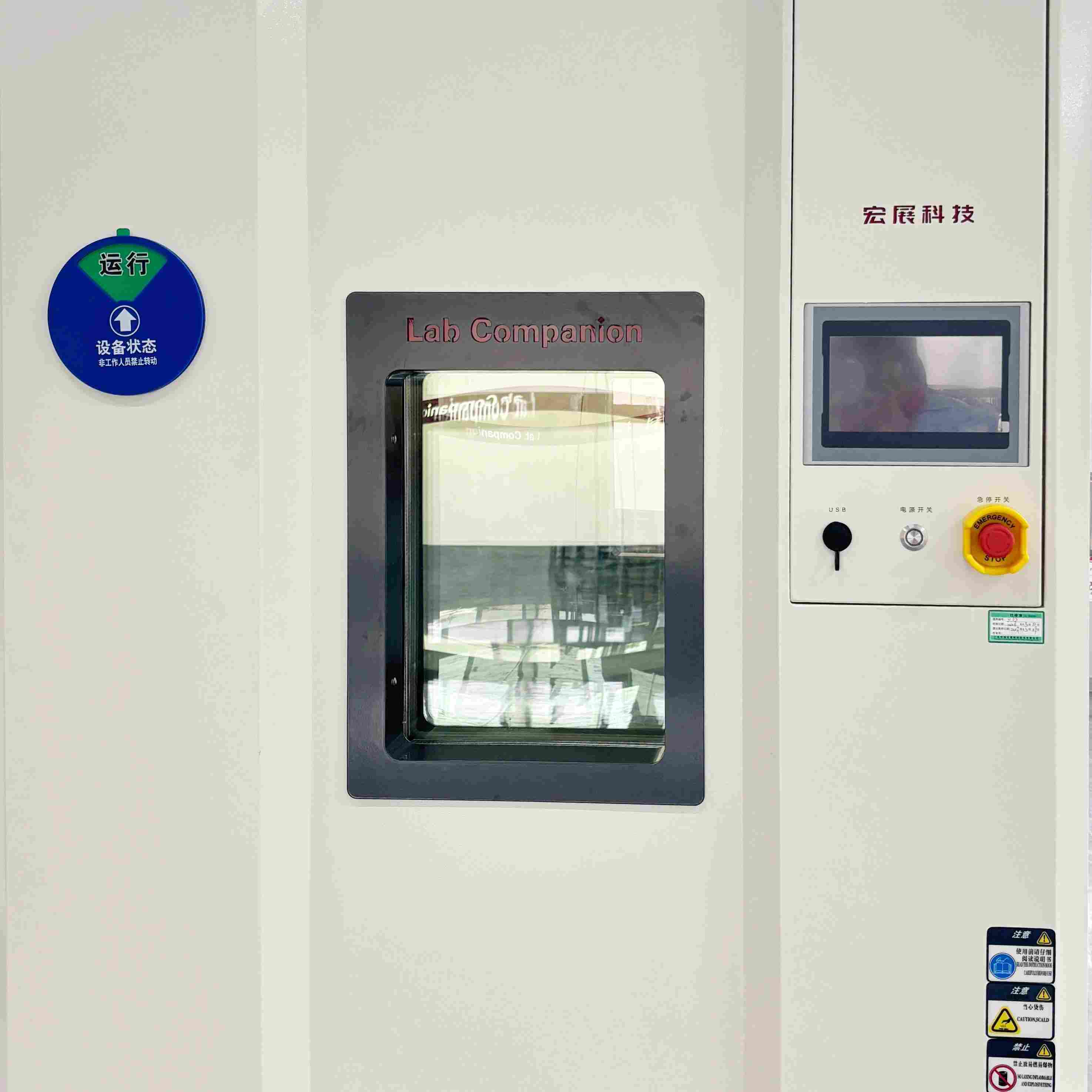

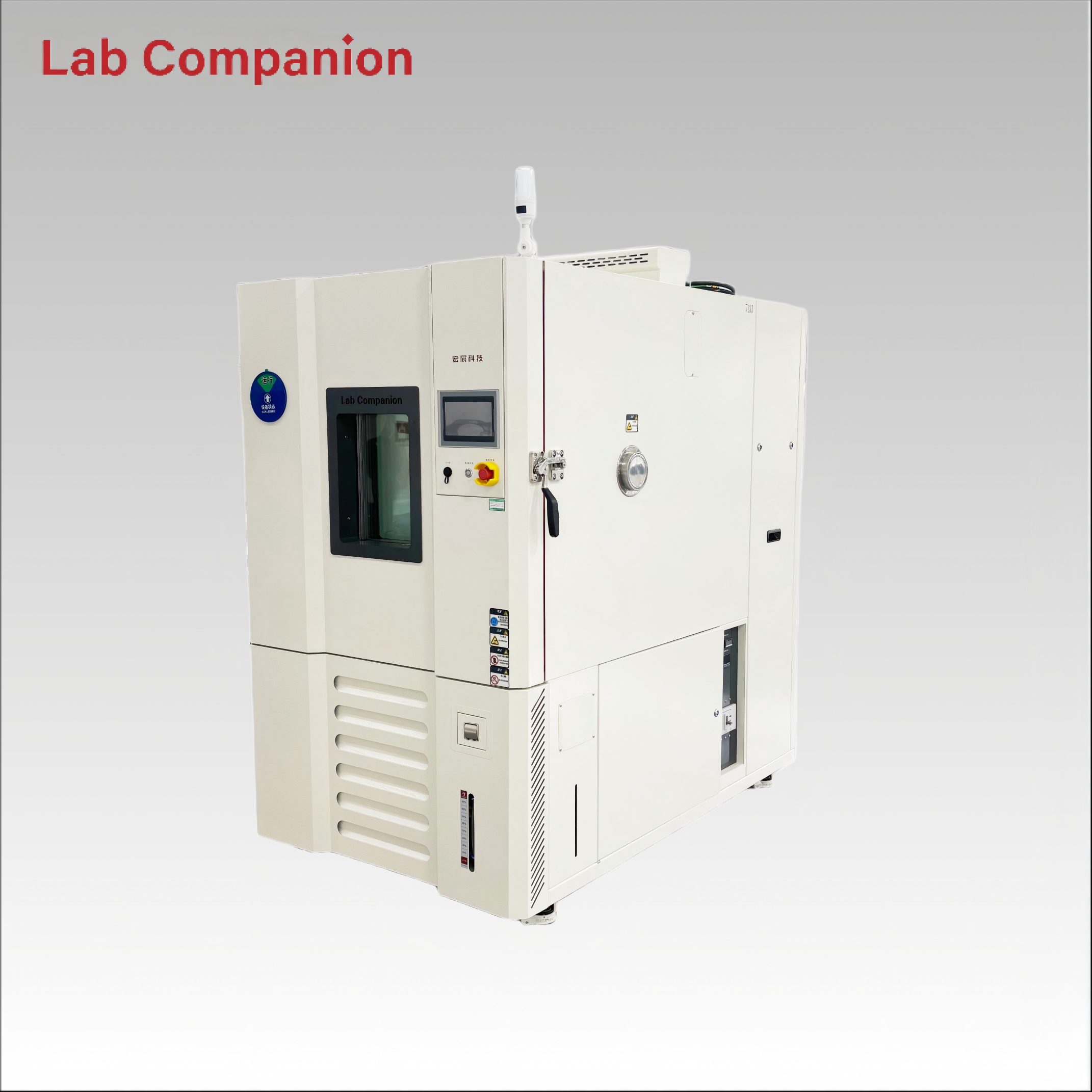

400L Thermal Cycling Chamber for Electronic Components CE Certified
400L Temperature Cycle Test Chamber for Automotive Parts
This 400L Temperature Cycle Test Chamber is designed for components in electronics, automotive, aerospace, metals, and other industries. It performs rapid temperature change, gradient adaptability, and temperature stress screening tests to evaluate product performance for design, improvement, and inspection. Constructed with SUS316CP stainless steel plate, it is equipped with water cooling and a Q8 touch controller, supporting a full-range linear heating/cooling rate of 3℃/min adjustable at will under loaded operation.
Item No :
TH-400-3-3AOrder(MOQ) :
1Product Origin :
ChinaColor :
White400L Environmental Test Chamber with CE Certification for Lab
|
Temperature range |
-45℃～＋150℃ |
|
Humidity range |
20~98%RH |
|
Temperature fluctuation |
± 0.5℃ |
|
Humidity fluctuation |
±2%RH |
|
Temperature uniformity |
≤2℃ |
|
Humidity uniformity |
+2 - 3% RH |
|
Temperature deviation |
± 2℃ |
|
Heating rate |
≥3℃/min adjustable arbitrarily （-40~90℃ The whole average heating, load 15 KG） |
|
Cooling rate |
≥3℃/min adjustable arbitrarily （-40~90℃ The whole average cooling, load 15 KG） |
|
Working volume |
400L |
|
Internal dimension |
W:800mm × H:800mm × D:700mm |
|
External dimension |
W:1050mm × H:1850mm × D:1670mm |
400L High Low Temp Cycling Chamber for Material Testing
Features of the Rapid Temperature Change Test Chamber:
Refrigeration System:
The air supply mode inside the test chamber adopts an upper air supply and lower return air cooling system.
Refrigeration System and Compressor: To ensure the test chamber’s cooling rate and minimum temperature requirements, this chamber is equipped with a binary cascade air-cooled refrigeration system driven by Taikang hermetic compressors. The cascade refrigeration system consists of a high-temperature refrigeration cycle and a low-temperature refrigeration cycle, connected by an evaporative condenser, which also serves as the energy transfer medium. Heat from the working chamber is removed via the two-stage refrigeration system to achieve the target temperature.
The refrigeration system design incorporates energy regulation technology, an effective solution that ensures stable and normal operation of the refrigeration unit. This reduces the operating cost and failure rate of the refrigeration system to an economically optimal level.
(refrigeration room )
|
Number |
Name |
Illustrate |
|
1 |
Compression engine |
Compression refrigeration |
|
2 |
Pressure protection controller |
When the pressure in the pipeline is too high or too low, the equipment will call the police |
Environmental Chamber Temperature Humidity Control
Intelligent Controller Environmental Chamber
150L High Speed Temperature Cycling Test Chamber
It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.
Performance：
High accuracy
Precision control with 18bit A/D convertor
TEMP. : ±0.1% of full scale ±1 digit
HUMI. : ±1.0% of full scale ±1digit
Optimizing PID group
Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only
Specialized controller
As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV
Specialized humidity control
Humidity control algorithm implements a stable control according to the equipment size。
Heating cooling control
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
