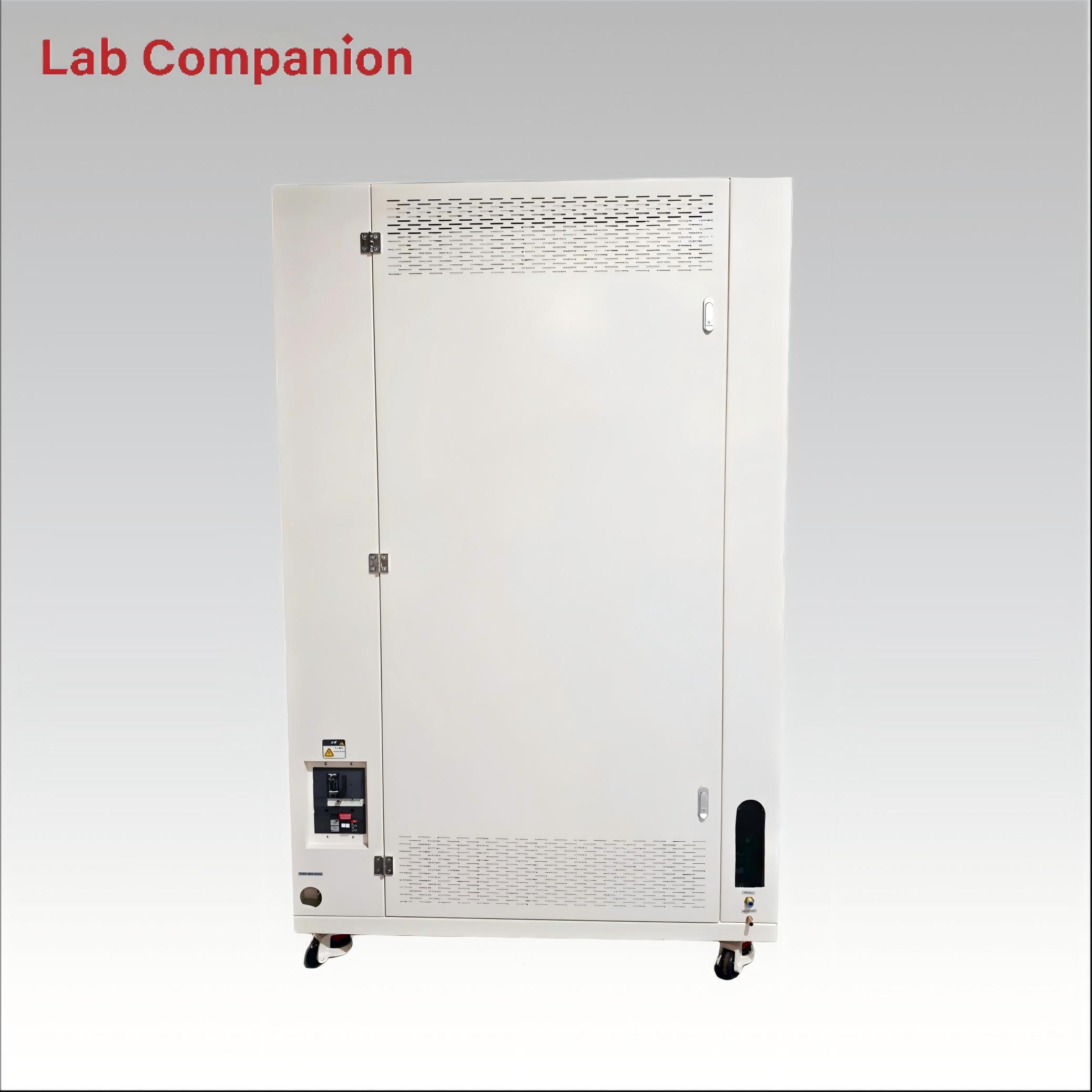

1617L Rapid Thermal Cycle Chamber for Semiconductor Component Reliability Test
1617L Fast Temperature Change Chamber for Automotive Electronic Stress Screening
This 1617L Temperature Cycle Test Chamber serves components across electronics, automotive, aerospace, metal and other industries. It conducts rapid temperature variation, gradient adaptation and temperature stress screening to assess product performance for design optimization and quality inspection. The inner chamber is made of SUS304 stainless steel, with two Φ100mm cable ports on both left and right sides. Fitted with a Q8 touch controller, it achieves full-range linear heating and cooling rate ≥10℃/min, freely adjustable under loaded conditions.
Item No :
TC-1617-10-10Order(MOQ) :
1Product Origin :
ChinaColor :
WhiteLarge 1617L Rapid Temp Cycling Chamber for 800G Optical Module Validation
|
Temperature range |
-70℃～150℃ |
|
Rapid temperature change range |
-45℃ ~ 90℃ (freely configurable) |
|
Temperature fluctuation |
± 0.5℃ |
|
Temperature uniformity |
≤2℃ |
|
Temperature deviation |
± 2℃ |
|
Heating rate |
≥10℃/min adjustable arbitrarily（-45~+90℃ The whole average heating, load 60 KG, heat load 15kW） |
|
Cooling rate |
≥10℃/min adjustable arbitrarily（+90~-45℃ The whole average cooling, load 60 KG, heat load 15kW） |
|
Working volume |
1617L |
|
Internal dimension |
W:1000mm × H:1050mm × D:1400mm |
|
External dimension |
W:1300mm × H:2070mm × D:2694mm |
Large 1617L Rapid Temp Cycling Chamber for 800G Optical Module Validation
Features of the Rapid Temperature Change Test Chamber:
Refrigeration System:
The air supply mode inside the test chamber adopts an upper air supply and lower return air cooling system.
Refrigeration System and Compressor: To ensure the test chamber’s cooling rate and minimum temperature requirements, this chamber is equipped with a binary cascade air-cooled refrigeration system driven by Taikang hermetic compressors. The cascade refrigeration system consists of a high-temperature refrigeration cycle and a low-temperature refrigeration cycle, connected by an evaporative condenser, which also serves as the energy transfer medium. Heat from the working chamber is removed via the two-stage refrigeration system to achieve the target temperature.
The refrigeration system design incorporates energy regulation technology, an effective solution that ensures stable and normal operation of the refrigeration unit. This reduces the operating cost and failure rate of the refrigeration system to an economically optimal level.
(refrigeration room )
|
Number |
Name |
Illustrate |
|
1 |
Compression engine |
Compression refrigeration |
|
2 |
Pressure protection controller |
When the pressure in the pipeline is too high or too low, the equipment will call the police |
Environmental Chamber Temperature Humidity Control

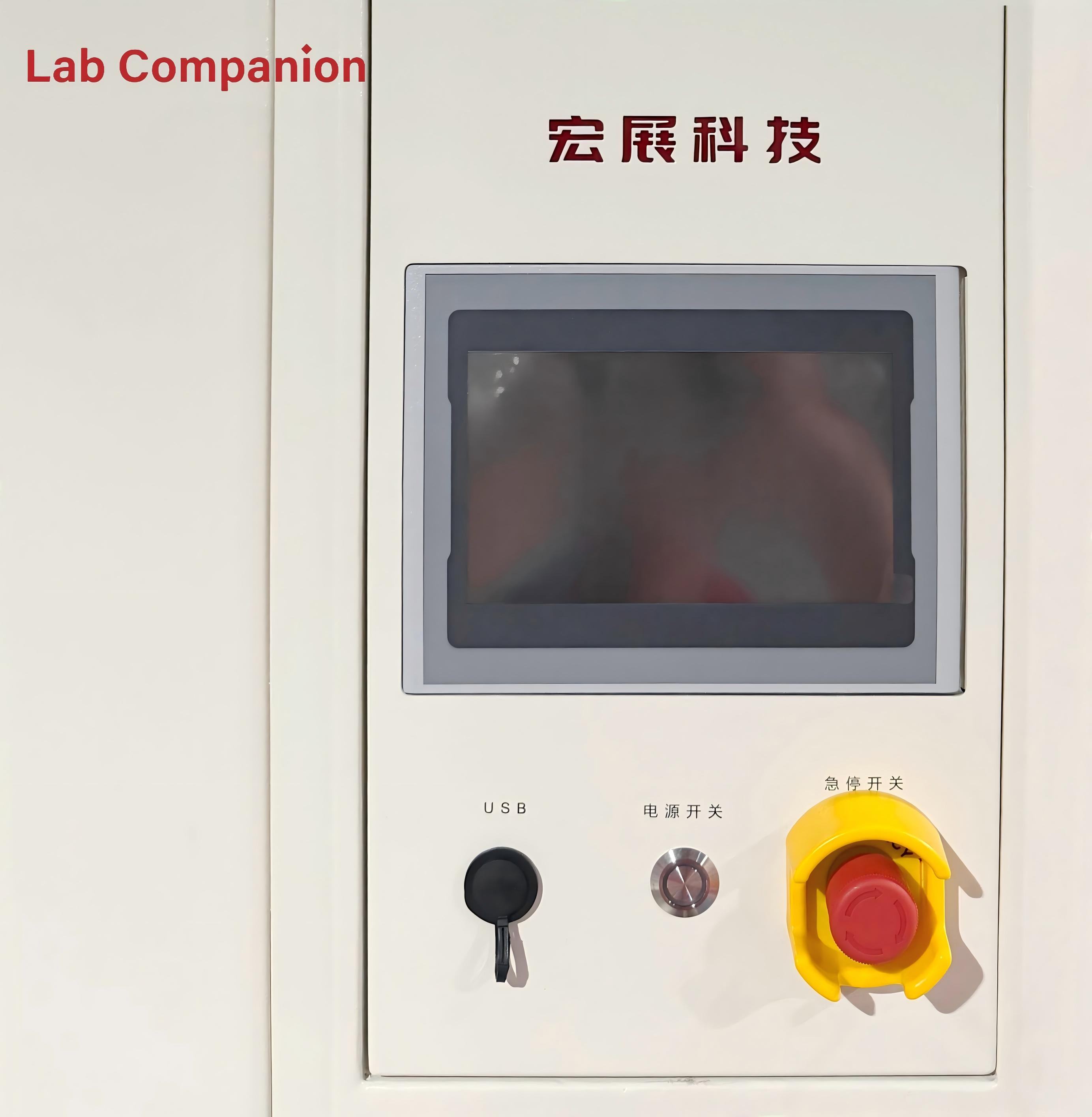

Intelligent Controller Environmental Chamber
1617L High Speed Temperature Cycling Test Chamber
It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.
Performance：
High accuracy
Precision control with 18bit A/D convertor
TEMP. : ±0.1% of full scale ±1 digit
HUMI. : ±1.0% of full scale ±1digit
Optimizing PID group
Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only
Specialized controller
As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV
Specialized humidity control
Humidity control algorithm implements a stable control according to the equipment size。
Heating cooling control
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
