Lab Companion 416L Temperature Humidity Test Chamber for Electronics

Lab Companion 416L Temperature Humidity Test Chamber for Electronics

 416L High Low Temperature Humidity Chamber for Materials

416L High Low Temperature and Humidity Chamber – Core Features


This high-performance environmental test chamber features an optimized space-saving design, ultra-high precision control, Q8 intelligent operation controller, and clear visual observation window for easy operation and real-time sample monitoring. It offers a temperature range of 0℃–150℃ and humidity range of 20%–98% RH, with an inner chamber constructed from 316 stainless steel for superior corrosion resistance and long service life, delivering stable and accurate environmental simulation for industrial and laboratory testing.
  • Item No :

    C-416-0
  • Order(MOQ) :

    1
  • Product Origin :

    China
  • Color :

    White

416L Programmable Temperature Humidity Test Chamber for Lab

Temperature range

0℃~+150℃. ( air-cooled )

Humidity range

20% to 98% RH (programmable)

Temperature fluctuation

≤± 0.5℃

Humidity fluctuation

± 2.0% RH

Temperature deviation

± 2.0℃

Humidity deviation

± 2~3%

Temperature uniformity

± 2℃

Uniformity of relative humidity

± 3.0% RH

Heating speed

0℃~150℃ (nonlinear empty load, approximately 3℃/ min)

Heating rate

RT℃~ 0℃ (nonlinear empty load, 1℃/ min)

Power

6.5KW  18A

Internal dimension

W850*H700*D700(mm)

External dimension

W1050*H1820*D1500(mm)

 416L Climatic Test Chamber Temperature Humidity for Industry

Structural Characteristics

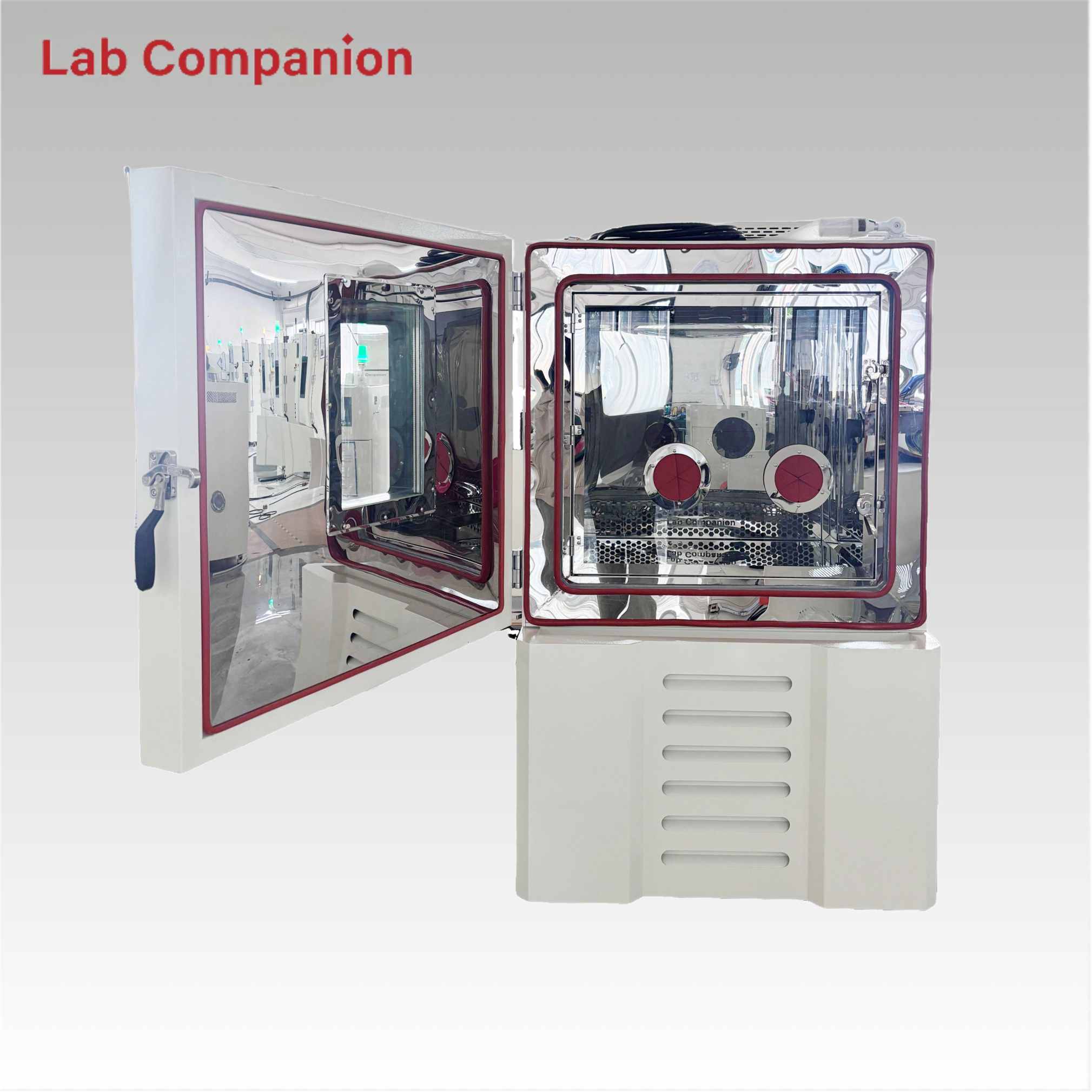

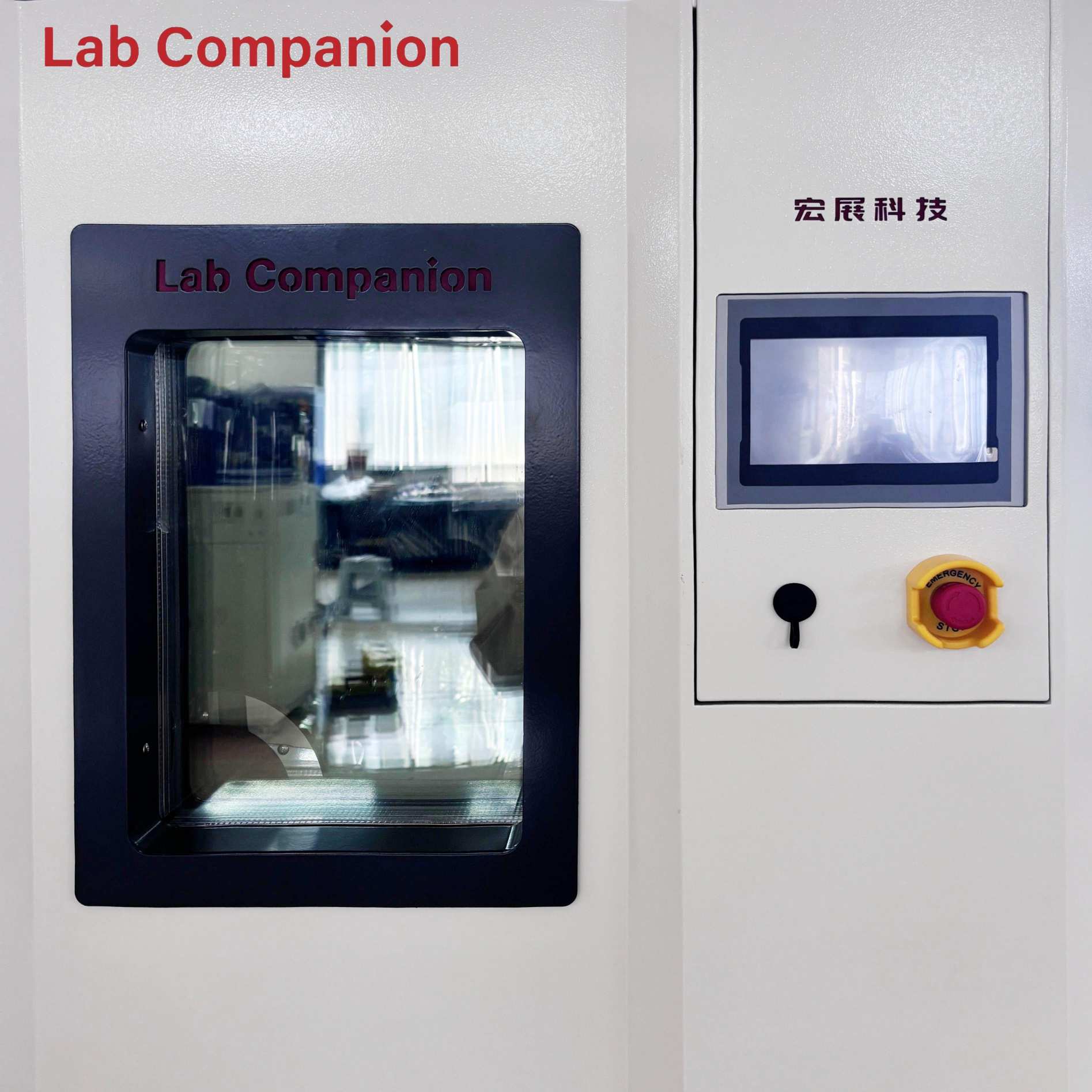

  1. Streamlined Appearance & Anti-Condensation Observation Windows

    The chamber features a sleek, streamlined exterior with smooth front and side panels, enhancing both durability and visual appeal. It is equipped with a double-layer insulated glass observation window on the door with anti-condensation heating, enabling clear sample monitoring without fogging. An additional side observation window is included for easy viewing of test status.

  2. Efficient Insulation & Robust Construction



  • Interior: Crafted from SUS316 stainless steel, offering excellent corrosion resistance and easy cleaning for long-term industrial and laboratory use.
  • Shell: Made of high-strength coated steel, scratch-resistant and highly durable.
  • Seal & Insulation: High-temperature resistant silicone gaskets and premium insulation minimize heat loss, ensuring stable internal conditions and low energy consumption.


  1. Customizable Test Ports

    One Ø200 mm test port is provided on each side for easy connection to external sensors or testing devices. Port diameter and quantity can be customized to meet diverse testing needs.

  2. Floor-Standing Design

    Stable, shockproof floor-standing structure for convenient loading/unloading of samples. Reinforced bottom design ensures strong load-bearing capacity.

416L Environmental Temperature Humidity Test Chamber for Automotive

Professional 416L Temperature Humidity Test Chamber for Product Reliability
