The equipment is suitable for the test of electrical and electronic products, automobile and motorcycle parts, seals to prevent sand dust from entering seals and shells in sand and dust environment. To test electronic and electrical products, automobiles, motorcycle parts, seals in the sand environment in the use, storage, transportation performance.
Item No :
LM-IP56X-1452LOrder(MOQ) :
1Product Origin :
DongguanColor :
WhiteDustproof Testing Chamber
|
External chamber size |
1650D*1350W*2120H（including the truckle） |
|
Inner chamber size |
L1100*W1100*H1200mm |
|
Equipment power supply |
220V, 3KW |
|
Sample rack bearing |
50KG |
|
IP56X |
|
|
External chamber material |
Cool Rolled Plate+Powder Coating |
|
Internal chamber material |
SUS201 High quality stainless steel mirror plate |
|
Temperature range |
RT+10℃～40℃（heating system） |
|
Humidity range |
≤85%RH |
|
Airflow velocity |
No more than 2m/s |
|
Dust concentration |
2～4kg/m³ |
|
Dust specification |
The talc can be dried through a square hole with a 75um screen and a 50um wire diameter |
|
Percussion time |
1S-999H(adjustable) |
|
Dust blowing time |
1S-999H(adjustable） |
|
Dust dehumidification |
Electrical heating dehumidification |
|
Test product pressure difference |
A is below atmospheric pressure 1.98kPa or B has no pressure difference |
|
Negative pressure device |
Vacuum pump, filter, flowmeter, pressure gauge |
|
Control system |
Embedded large LCD touch screen |
|
Mode of operation |
Constant/program run |
|
Security device |
1. Grounding protection. |
|
2. Overvoltage protection. |
|
|
3. Overcurrent protection. |
|
|
4. Overtemperature protection. |
|
|
5. Overpower protection. |
|
|
6. Leakage protection. |
|
|
7. Short circuit protection. |
|
|
8. Lack of phase protection. |
|
|
9. Undervoltage protection. |
|
|
10. Motor overheat protection. |
|
|
11. Controller power failure memory protection. |
|
|
12. Emergency stop switch: Install emergency stop button on equipment and control room. |
|
|
Attachment |
1. One copy of operating instructions; 2. One factory certificate; 3. One copy of equipment warranty card; |
Dust Test Chamber

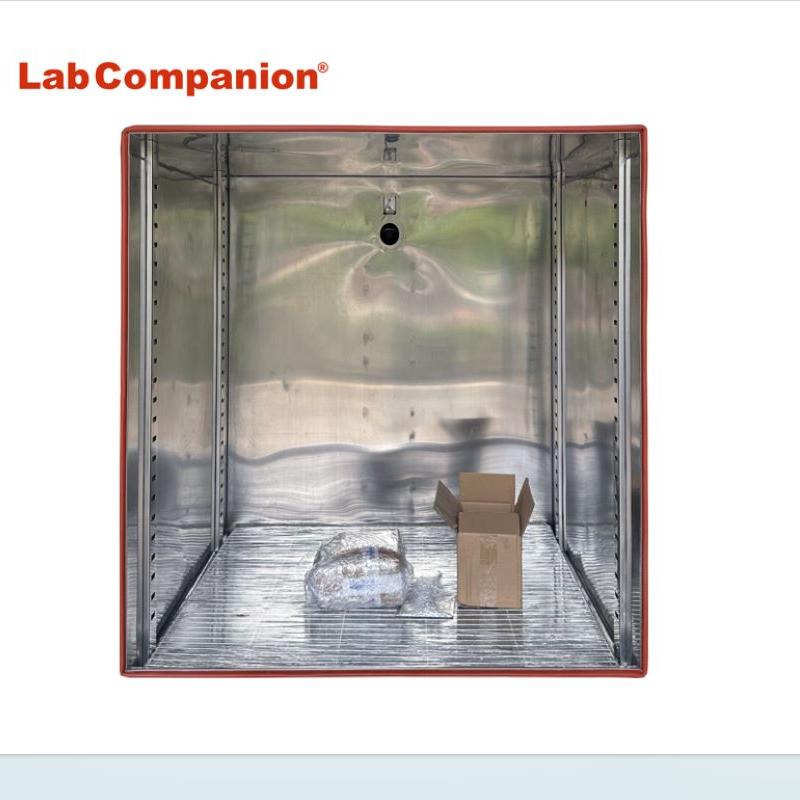

1.The equipment shell liner is made of high-quality stainless steel plate, the overall appearance is beautiful and generous. There is a large area observation window and a manual wiper device in the middle of the door, which can facilitate the test of the test specimen to be clearly seen during the test.
2.The main controller of the device is a touch screen controller.
3.The equipment is heated with stainless steel finned heating tubes.
4.conical funnel is designed with a dust collection port and a dust extraction port at the bottom. A high-pressure turbine circulating fan is installed at the dust extraction port to send the pumped dust to the top of the inner box, and then the dust is blown vertically and naturally downward from the top. When the dust falls on the side wall of the funnel, the dust is recovered to the dust extraction port through the vibration device, and then cycle.
5.The blowing period and vibration period of the whole equipment are adjustable, and equipped with a total test timer.
6.The unique air duct design ensures the vertical circulation of non-laminar flow in the box
Box: well sealed, effectively prevent dust leakage, and with synchronous covibration device, to prevent the accumulation of dust box wall; The inner box is equipped with a dust concentration homogenizer and a hot-wire anti-static adsorption dust drying device, and adopts a full-penetration observation window and dust scraper.
Custom Sand Dust Test Chamber
The equipment is suitable for the test of electrical and electronic products, automobile and motorcycle parts, seals to prevent sand dust from entering seals and shells in sand and dust environment. To test electronic and electrical products, automobiles, motorcycle parts, seals in the sand environment in the use, storage, transportation performance.
